Diagnosing engine starting and charging system with the USB Autoscope and the ElPower script by Andrey Shulgin Features: - Checks the battery; - Checks the generator; - Checks the starter; - Checks powerful electric consumers…

Diagnosis of the engine using USB Autoscope and script Px version 3.x by Andrew Shulgin The Px script performs the measurement, calculation and analysis of the key pneumatic characteristics of the cylinder, intake and exhaust systems, the operation of the valve timing mechanism and ignition timing control system, and also evaluates the mutual effect of these systems on each other. The work of the script is based on an automatic analysis of the pressure waveform in the cylinder, obtained with a pressure transducer screwed into place the spark plug. To carry out this test, it is enough to install a pressure transducer on the spark plug seat, and connect a spark gap and a synchronization sensor to the high-voltage wire of this cylinder. Allows you to: - Evaluate the tightness of the cylinder; - Calculate the geometric compression ratio; - Automatically measure the real phases of the gas distribution; - In the form of animation show the real process of gas exchange in the cylinder; - To reveal the insufficient filling capacity of the cylinder with a fresh mixture and to establish its causes; - check the efficiency of the turbocharger, the drive supercharger, the variable valve timing system (Vanos, VVT..), the system for changing the lifting height of the valves (VTEC..), the system for changing the geometry of the intake tract, the system of the inlet path resonators; - evaluate the efficiency of the turbocharger; - identify an inadmissibly large filling of the cylinder due to improper operation of the drive or turbocharger; - Identify the increased costs of engine power for cleaning the cylinder from exhaust gases; - Identify the modes of operation of the engine, in which the angles of ignition timing are not optimal.

Free distributed "USB Oscilloscope" software for PicoScope by Cylinder Pressure Waveform performs measurements, calculations and analysis of key pneumatic characteristics of the cylinder, intake and exhaust systems, timing system and ignition timing system. Forum: Website:

The Px script performs the measurement, calculation and analysis of the key pneumatic characteristics of the cylinder, intake and exhaust systems, the operation of the valve timing mechanism and ignition timing control system, and also evaluates the mutual effect of these systems on each other. The work of the script is based on an automatic analysis of the pressure waveform in the cylinder, obtained with a pressure transducer screwed into place the spark plug. To carry out this test, it is enough to install a pressure transducer on the spark plug seat, and connect a spark gap and a synchronization sensor to the high-voltage wire of this cylinder. Tools used: - USB Autoscope IV, an 8-channel scope: - Px35 high pressure (in cylinder) transducer -0.9…+35 Bar Test Px allows you to: - Evaluate the tightness of the cylinder; - Calculate the geometric compression ratio; - Automatically measure the real phases of the gas distribution; - In the form of animation show the real process of gas exchange in the cylinder; - To reveal the insufficient filling capacity of the cylinder with a fresh mixture and to establish its causes; - check the efficiency of the turbocharger, the drive supercharger, the variable valve timing system (Vanos, VVT..), the system for changing the lifting height of the valves (VTEC..), the system for changing the geometry of the intake tract, the system of the inlet path resonators; - evaluate the efficiency of the turbocharger; - identify an inadmissibly large filling of the cylinder due to improper operation of the drive or turbocharger; - Identify the increased costs of engine power for cleaning the cylinder from exhaust gases; - Identify the modes of operation of the engine, in which the angles of ignition timing are not optimal. Related videos: USB Autoscope cylinder efficiency test CKP USB Autoscope engine starting and charging system test ElPower For more information, please visit our website:

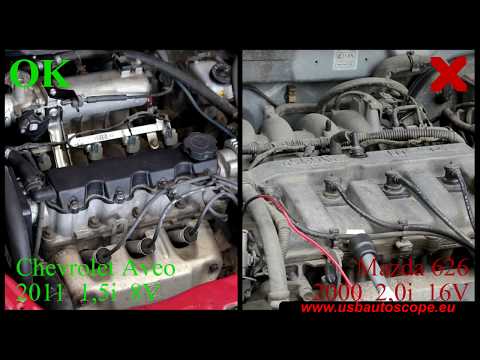

CSS is a pretty powerful automotive test and it takes 10 minutes to get everything set up and run. In those 10 minutes you've learned: 1. Which cylinder is misfiring 2. Under what running conditions it's misfiring (idle, part throttle, full load) 3. Relative compression test 4. Whether the variable valve timing is working 5. What the ignition timing advance is 6. The condition of the crankshaft reluctor. Tools used: - USB Autoscope IV, an 8-channel scope: Test CKP allows you to: - Evaluate static and dynamic compression for each cylinder; - Identify ignition system faults; - Assess fuel injector condition; - Define the characteristics of the ignition timing subsystem; - Determine crankshaft reluctor profile, damage, and/or run out Related videos: USB Autoscope in-cylinder pressure measurement and analysis with Px script USB Autoscope engine starting and charging system test ElPower For more information, please visit our website:

ElPower script is used for automatic analysis of battery voltage and current waveforms in order to obtain a fast and comprehensive diagnostic of starting and charging systems. The script in conjunction with the oscilloscope is providing an advanced report on the battery, alternator and starter condition. Additionally, other high-power electrical consumers may be analyzed very quickly. Tools used: - USB Autoscope IV, an 8-channel scope: - APPA32 / APPA36T current transducer Test ElPower allows you to facilitate troubleshooting of the charging and starting system without extensive disassembly. Related videos: USB Autoscope cylinder efficiency test CKP USB Autoscope in-cylinder pressure measurement and analysis with Px script For more information, please visit our website:
